FCD Double Chopped Stitch Bonding Machine

Short Description:

Product Detail

Product Tags

*This machine is used for producing chopped strand mat,compound mat

Application Case

Glass Fiber3

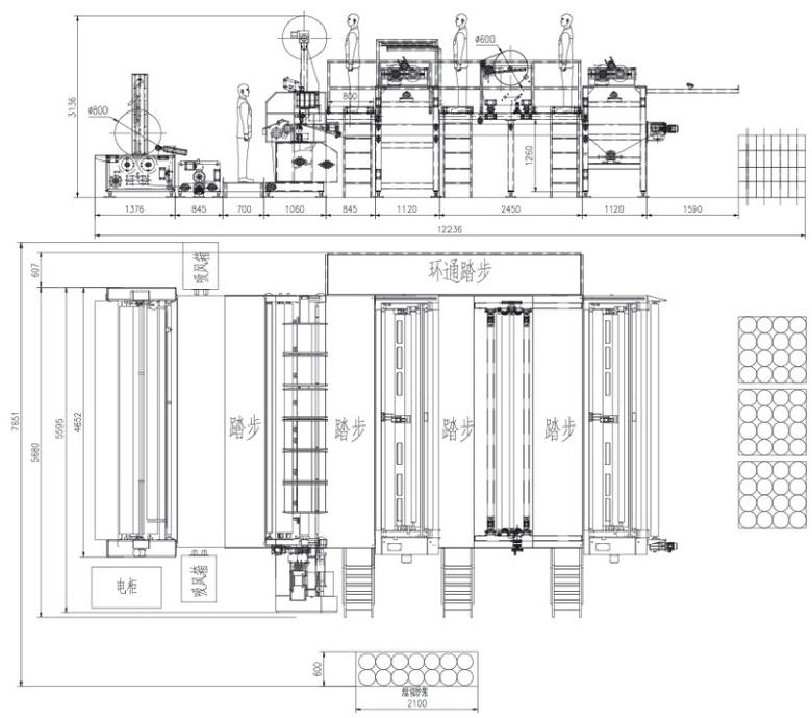

General assembly drawing

Glass Fiber3


Width 2800mm 3300mm
Gauge: F7
Speed: 50-900r/min 50—900r/min (The specific speed depend the products.)
Bar Number 1 Bar
Pattern Drive Eccentric Pattern Drive
Warp Beam Support 30 inches beam.EBC
Take-up Device Electronic Take-up
Batching Device Electronic Batching
Chopped Device 2 Chopped Device,Servo System Controlling.
Feeding Equipment Parallel feeding Servo System Controlling
Power 17kW
This type' s machine could be personal designed
